Telos Light Controller streamlines grow lighting management, giving growers full control of multi-fixture set-ups. This compact controller is precision-engineered for seamless integration with Telos Dynamic fixtures as well as most other dimmable LED, HPS, or UV fixtures.
The Telos Light Controller’s plug-and-play design enables easy installation while reducing technological reliance. This controller centralises full grow lighting control of 25 Telos Dynamic fixtures, eliminating the need for Wi-Fi, external gateways, or apps.
Digital Screen
Sunrise Sunset
Dual Temp Probes
Two Channel Control
The two-channel control operates grow lights independently, using separate light and temperature settings. This allows growers to fine-tune their environment for healthier, higher-yielding crops. For example, Telos Dynamic LED fixtures as primary grow lights, supported by HPS or UV fixtures to boost PPFD or maintain heat within the room. Additionally, LED and UV fixtures can be operated together for short periods to encourage photosynthetic behaviours. In multi-fixture spaces, where light streams overlap, this lighting and temperature control feature minimises photodamage, promoting even canopy formation.
Integrated temperature probes automatically dim lights when they become too hot. The emergency shutdown function protects equipment and crops from heat damage, ensuring grow room safety and longevity. Once conditions stabilise, the unit automatically restores normal lighting.
Technical Information

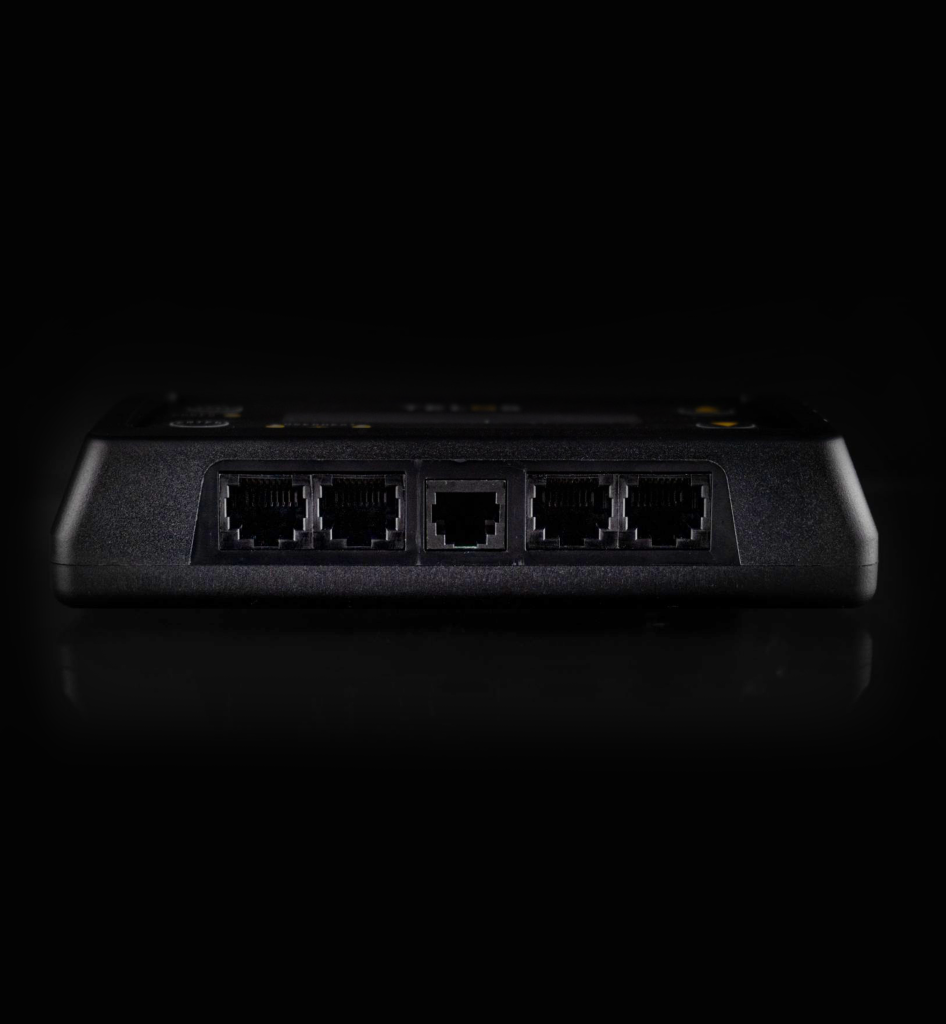

| Connection Interface | RJ45 to LLT Connector |
| Optional Connector | RJ45 to RJ12 |
| Dimming Range | 100% & Dim to Off |
| Dimming Protocol | 1-10 V Or PWM |
| Input Power | (From LED Driver) Or Optional 12 V Power Supply |
| Temperature Probe | 400 mm |
| Length Width Height mm | 10 x 75 x 28 |
| Weight | 162 g |
| Cable Length | 400 mm |
| MAnufacturer’s Warranty | 2 Years |
| Number Of Telos Fixtures | 25 Fixtures Per Channel 50 Fixtures In Total |
| Number Of Other Fixtures | Max Output Of The Signal 50 mA |
Streamlined Lighting Schedules
The digital timer enables precise, consistent lighting cycles that support existing feed and nutrient schedules. It ensures lighting cycles align with the plants’ circadian rhythm, providing accurate control over photoperiodism. The built-in day counter tracks growth cycles, promoting accurate nutritional planning according to each growth phase.
The Sunrise and Sunset feature mimics natural light changes, encouraging natural growth behaviours and minimising plant stress. This gradual light adjustment strengthens plants and boosts yields. By smoothly transitioning light levels, the Telos Light Controller stabilises temperature and humidity fluctuations, reducing condensation and mildew formation.
Efficient, Future-Proof Technology
The Telos Light Controller is engineered to protect grow room systems from power surges caused by switching on high-load AC circuits. When connected to a compatible fixture, the controller draws power directly from the light. If the fixture doesn’t provide power, the controller can be plugged into mains using a low-voltage converter. Designed for reliability and efficiency, it maintains stable operation even in demanding environments.
Primary and supplementary 0–10V ports ensure universal compatibility with Telos Dynamic and other dimmable LED, HPS, and UV fixtures.
Simple Setup Process
To set up the Telos Light Controller, simply plug the system into the mains. Connect the lights to the controller via its primary and supplementary ports. The LCD screen will display options for channel configuration and general settings.
‘Configure Channel’ allows growers to input individual settings for primary and supplementary lights. On/off scheduling, dimming range, and Sunrise/Sunset settings optimise grow light outputs for photoperiodism. The day counter allows growers to track grow phases, promoting natural growth and photosynthetic behaviours. Operational temperatures, emergency shutdown/restart temperatures, and cool down duration protect against surges and overheating, ensuring consistent system functionality.
‘General Settings’ allows growers to adjust the system’s time, language, display, grow light output types, temperature calibration, and factory reset. These settings result in a user-friendly interface, delivering fast and efficient operation.
